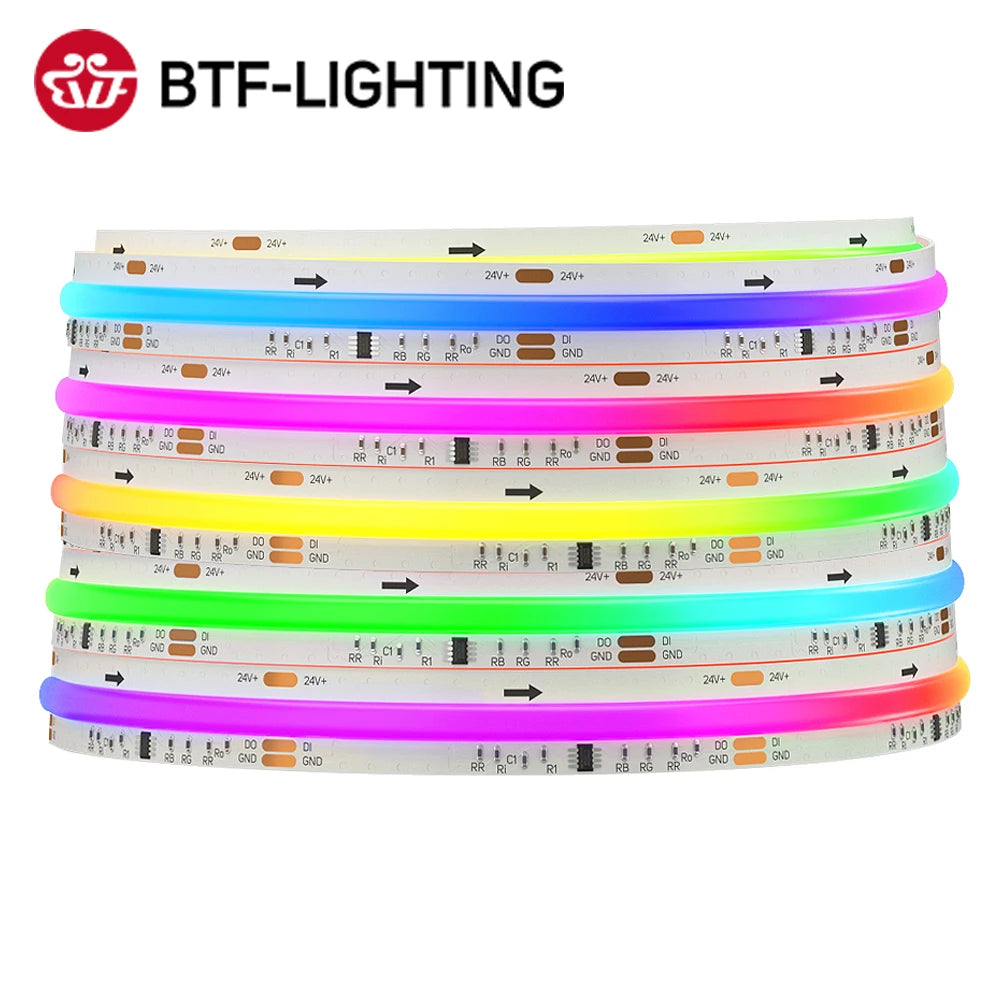

FCOB SPI RGB IC LED Light Strip WS2811 Addressable 720 630 LEDs Dream Color DC12V 24V WS2812B High Flexible FOB COB Lights

FCOB SPI RGB IC LED Light Strip WS2811 Addressable 720 630 LEDs Dream Color DC12V 24V WS2812B High Flexible FOB COB Lights

$64.62 USD
$86.16 USD $64.62 USD
Sale Sold out
Wattage
Length

SPECIFICATIONS

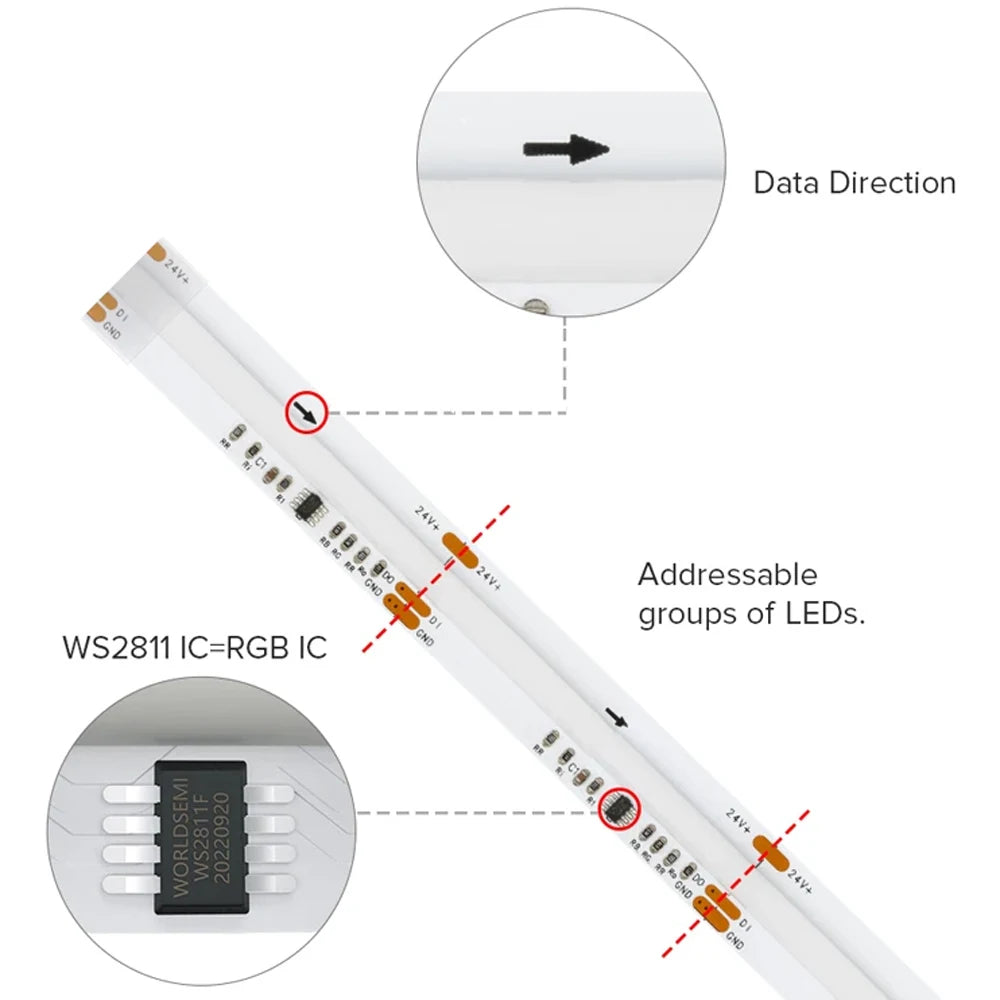

Addressable (630): Every 45 LED Addressable

Addressable (720): Every 36 LED Addressable

Attention 1: Must work with Pixels Controller and 12v/24v Power

Attention 2: Every 0.5 meter with Solder Joints

Average Life (hrs): 60000

Brand Name: BTF-LIGHTING

Certification: ce,FCC,ROHS,UL

Cuttable (630): Every 45 LED or 71 mm is cuttable

Cuttable (720): Every 36 LED or 50 mm is cuttable

FPCB Width: 720-12mm, 630-10mm

High-concerned chemical: None

IC Number/M (630): 14 IC Drives 630 LED

IC Number/M (720): 20 IC Drives 720 LED

Is Batteries Included: No

Is Smart Device: Yes

Item Type: Strip

LED Chip Model: WS2811

LEDs Number/M: 720/630

Luminous Flux: 2000-82000

Model Number: BTF-FCOB SPI RGBIC LED STRIP

Nominal Voltage: 12V/24V

Occasion: Living room

Optional Length: 1m/2m/3m/4m/5m

Origin: Mainland China

Package Including: Only LED Lights ( No power and pixels controller )

Power Source: DC

Strip type: COB

Theoretical Power: 12V-12W/m, 24V-21W/m

Voltage: DC12V/24V

WLED / ESP32: Do not support !

Waterproof: No

Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.
2. SPI FCOB RGB Must Use DC12V/24V Power Supply and Pixels Controller to Control.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

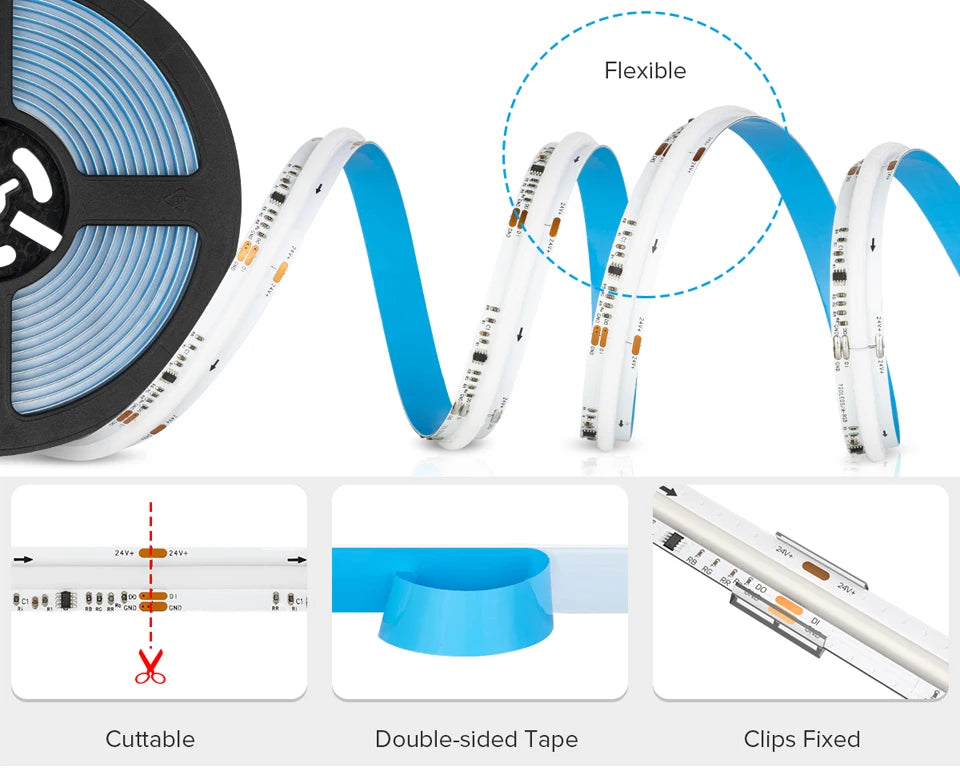

4. SPI FCOB RGB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.

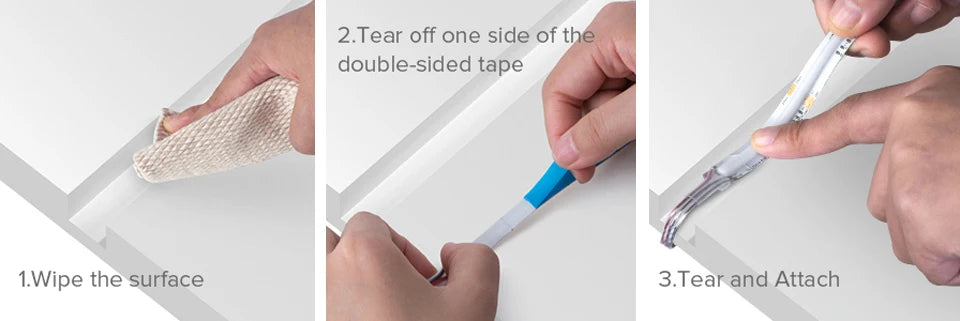

6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

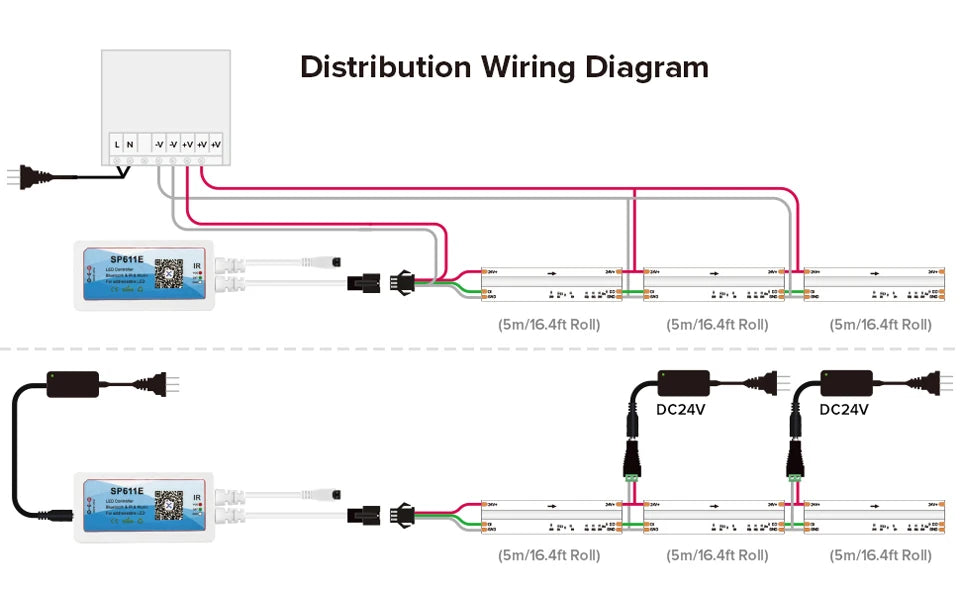

7. Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop.
8. This light strip is not compatible with WLED / ESP32 controllers, please buy another controller from our store!

How to Choose LED Power Supply and Pixels Controller?
First, Calculated The Whole LED Strip Lights Watts.
Theoretical Wattage: 12V-12W/m, 24V-21W/m, If You Buy 5m 24V LED Strip, So 21W*5=105W.
Then, Choose the Right LED Power Supply.
If you choose the LED Strip is Work with DC24V Power, So 105W / 24V=4.4A ( At Least 5A or more ).
Finally, Choose the Right Pixels Controller You Like.
SPI FCOB RGB LED Strip is Controlled By Single Data Line Pixels Controller.
So you could choose them from our store, we have Bluetooth APP SP630E, Wifi APP SP530E, and Computer controller etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you ).

FCOB SPI RGB IC LED Light Strip WS2811 Addressable 720 630 LEDs Dream Color DC12V 24V WS2812B High Flexible FOB COB Lights

Specification:

Input Voltage: DC12V, DC24V.

IC Type: FCOB RGB WS2811 IC.

Theoretical Wattage: 12V-12W/m, 24V-21W/m.

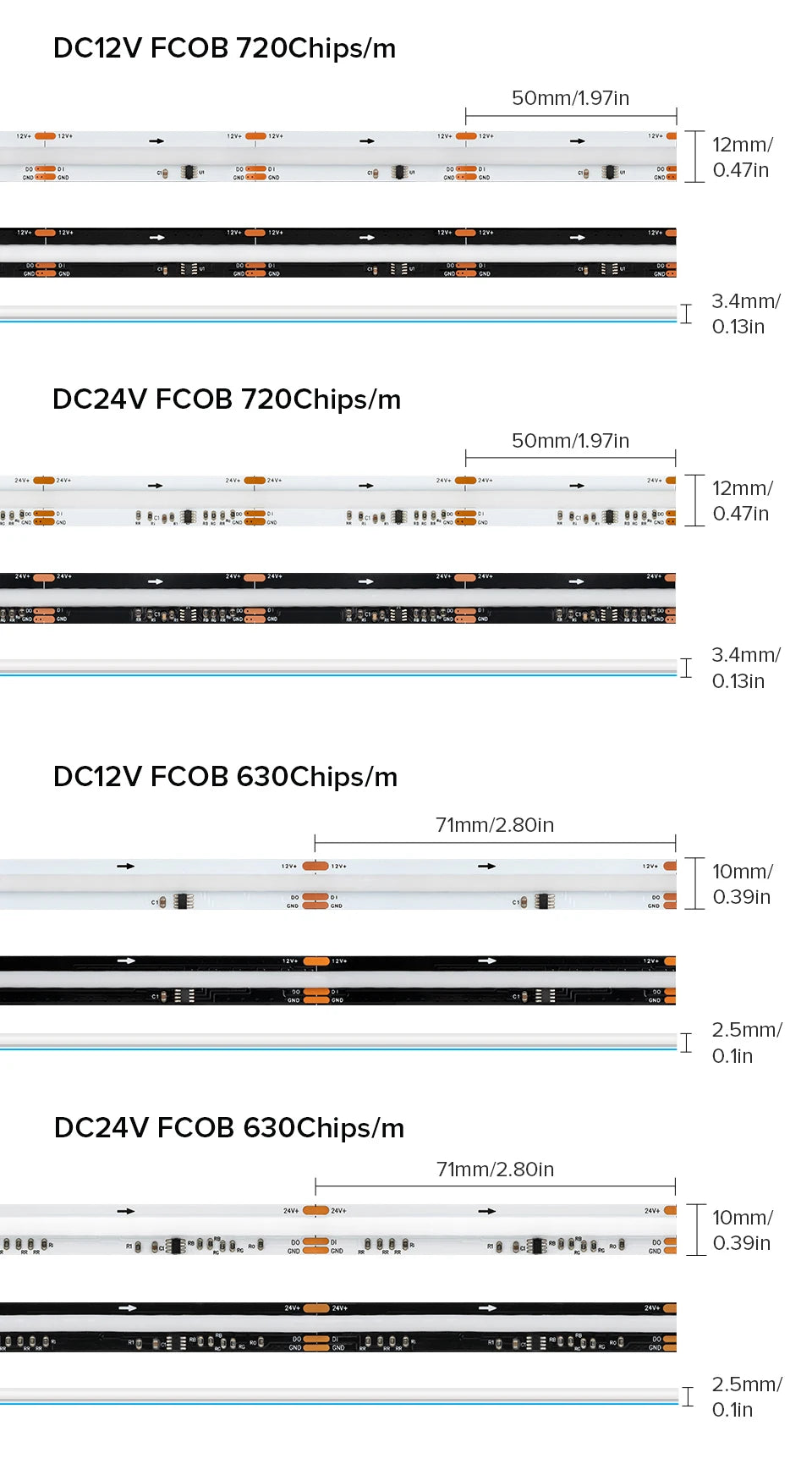

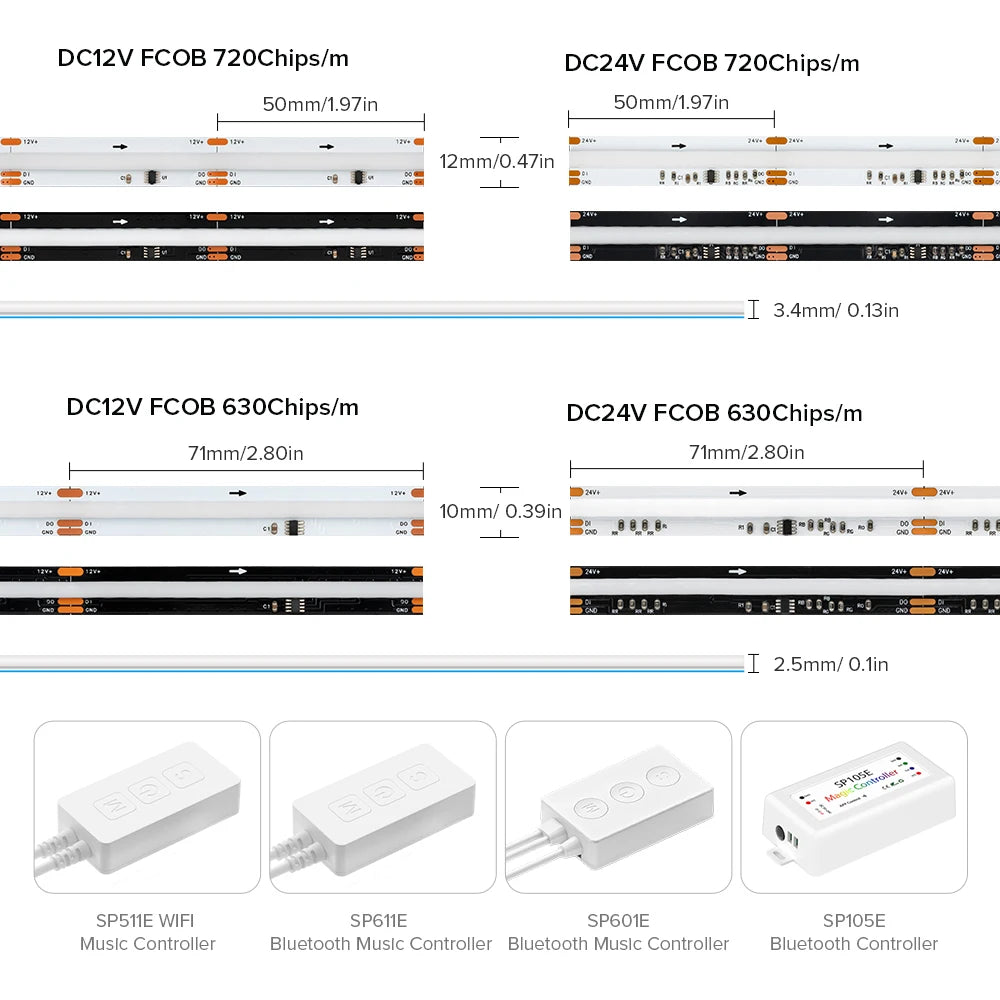

FPCB Width: 720-12mm, 630-10mm.

LED Quantity: 720 LEDs/M, 630 LEDs/M.

Cutting Length: 720-every 50mm, 630-every 71mm.

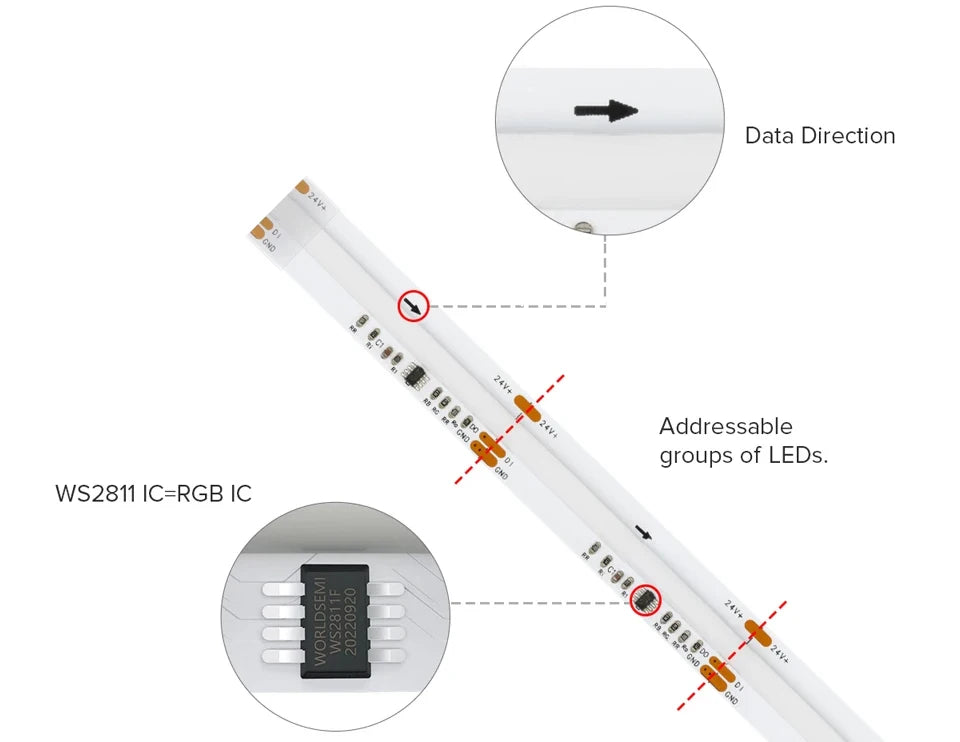

Addressable: every (720-50mm) or (630-71mm) can be unique controlled.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.

View Angle: 180°.

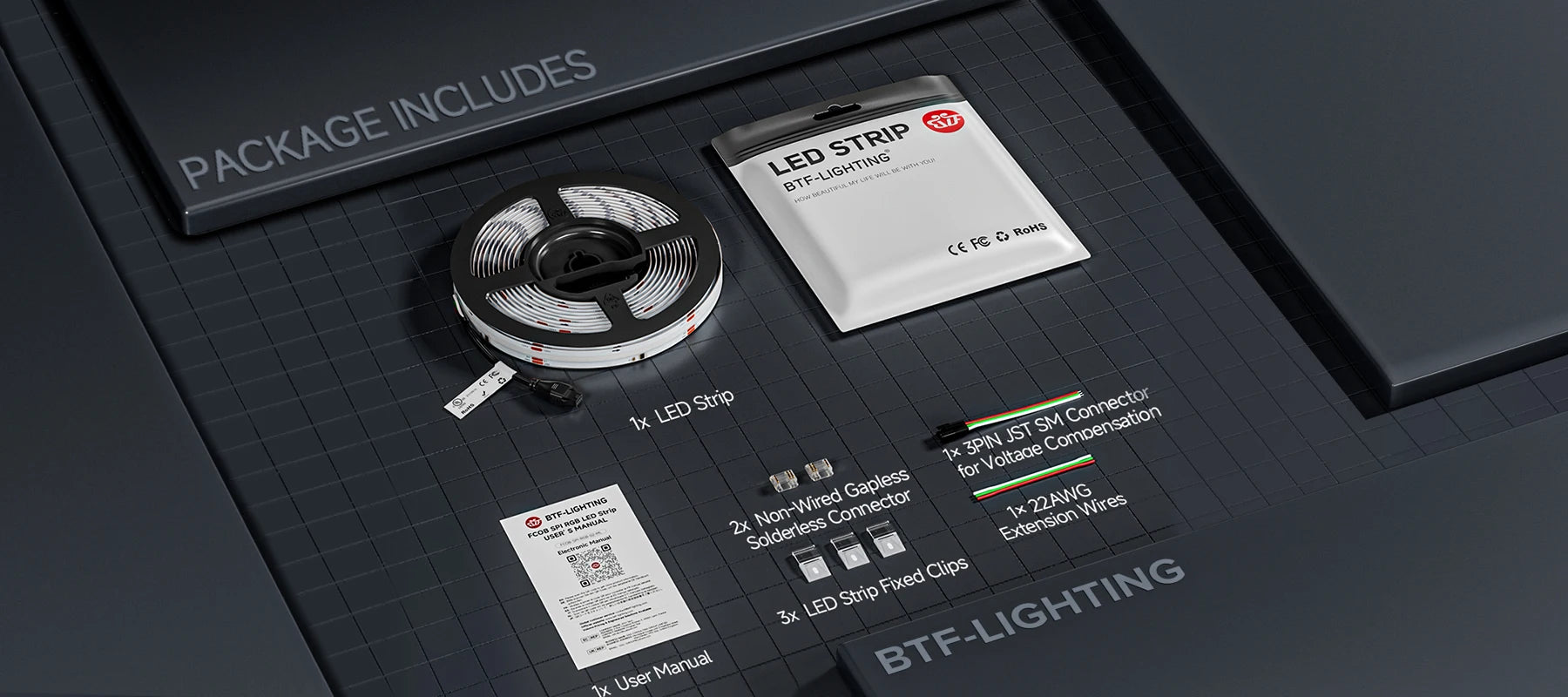

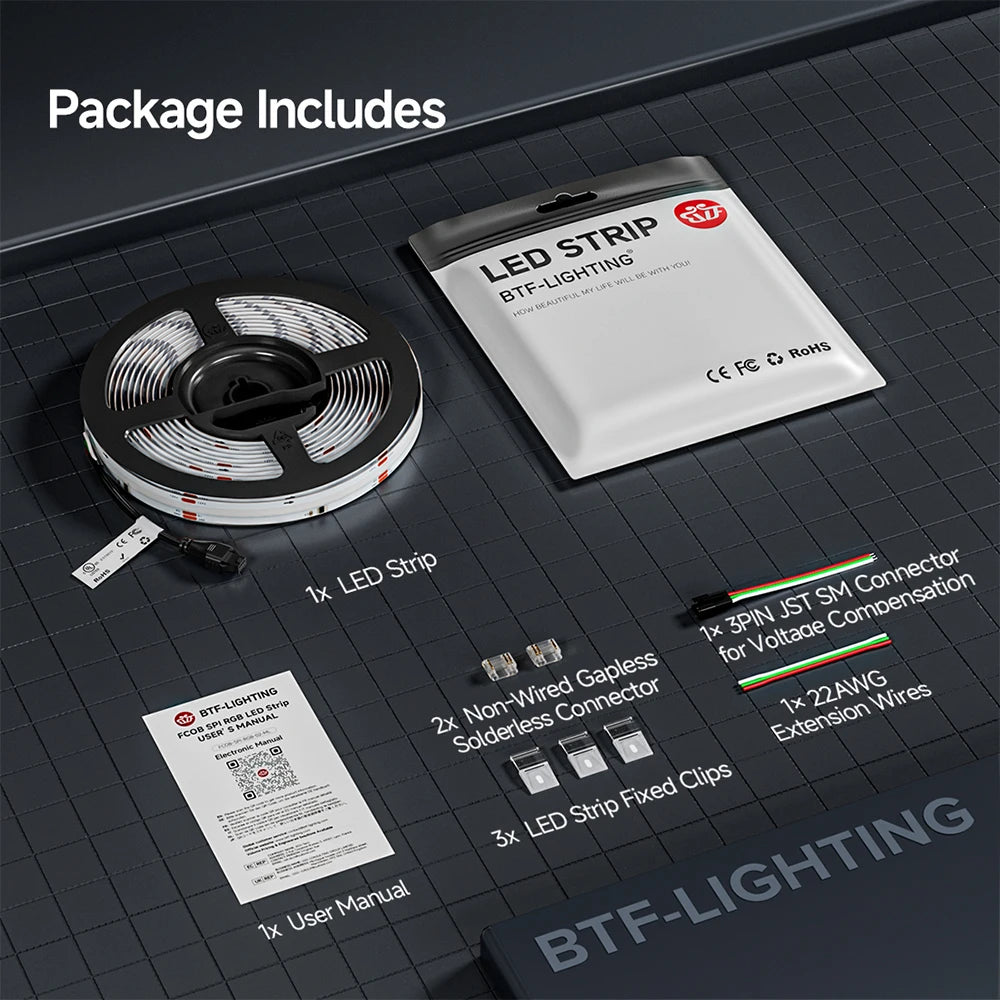

Package:

1 * FCOB 720/630 RGB IC LED Strip (power supply and SPI controller is not included).


Advantages:

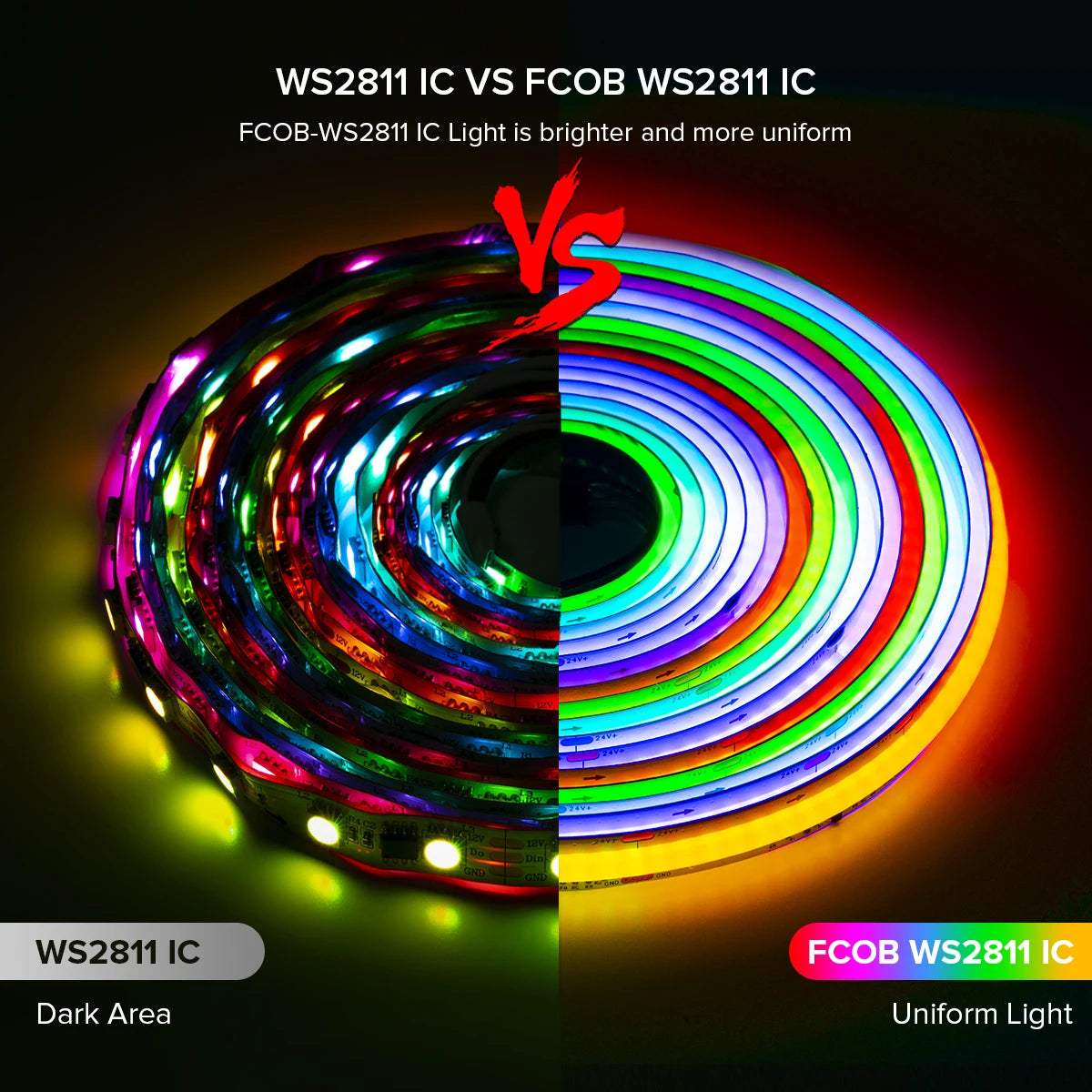

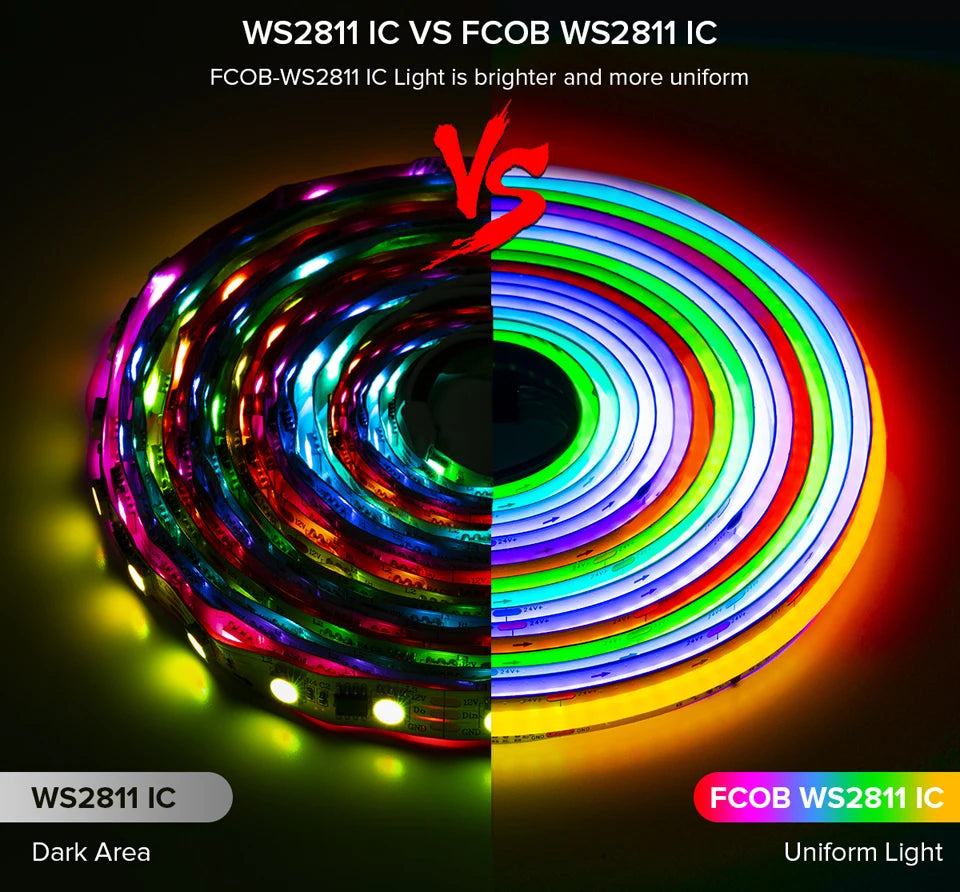

1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
